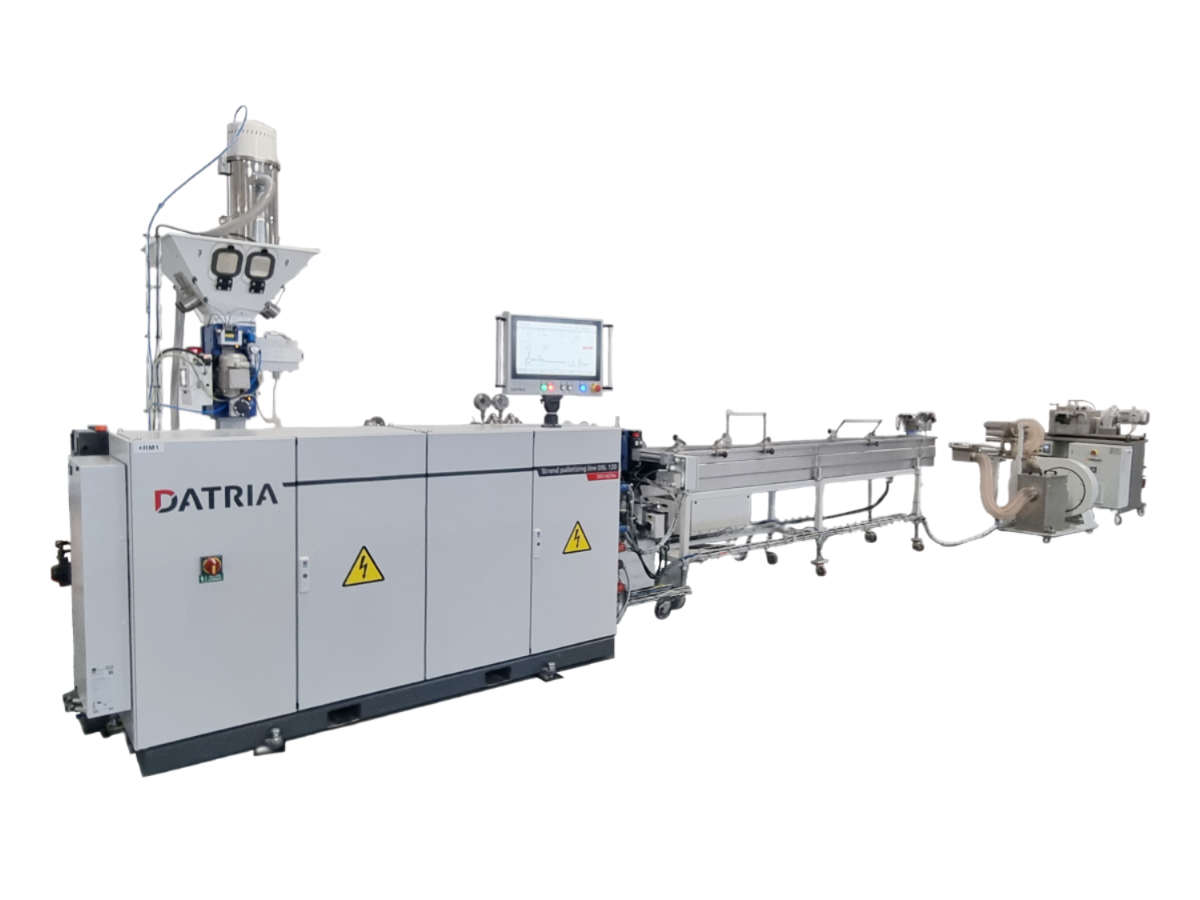

Regranulation string line DSL 120

Extrusion line with output up to 120 kg/h, depending on material and tooling. Suitable for regrind processing of technical plastics (PP, PE, ABS, PA + 30% GF), typically from automotive applications. Equipped with a 45 kW Baumüller IE4 synchronous motor and branded components: B&R inverter, Dynisco sensor, Omron PID control.

  • Single-screw extruder model DEX 60/36s with evacuation.
  • Barrel and screw D60mm with evacuation zone in bimetal design, which is characterized by high durability even when processing abrasive materials.
  • Transmission: Zambello
  • Optimized heating zones from the German manufacturer ETB with high efficiency and reduced consumption.
  • PLC extruder control - control using the B&R MULTITOUCH T50 touch screen, DEXTRUSION control software.
  • Material drying unit.
  • TSM gravimetric dispenser with the option of dispensing 4 materials + suction cups.
  • Degassing system with water circulation pump.
  • NORDSON hydraulic plate melt filter.
  • String head.
  • Stainless steel cooling tub including circulation pump and heat exchanger.
  • Air blower for strings with a double drying effect.
  • MAAG string granulator
  • POEX vibrating screen
  • Filling station for two octabins
  • The line is equipped with a central cooling unit.

Total power of the machine 52kW
