Regranulation string line DSL 150
Regranulation strand line DSL 150 with output up to 220 kg/h. Bimetal screw and barrel ensure long service life even with abrasive materials. Equipped with 45 kW Baumüller (DE) IE4 synchronous motor, outperforming standard IE2 motors. Features branded components: Schneider, Dynisco sensor or Osaka PID control. ETB heating zones ensure high efficiency and low energy use. Line control via Schneider analog or PLC system.

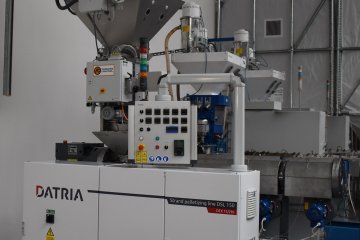

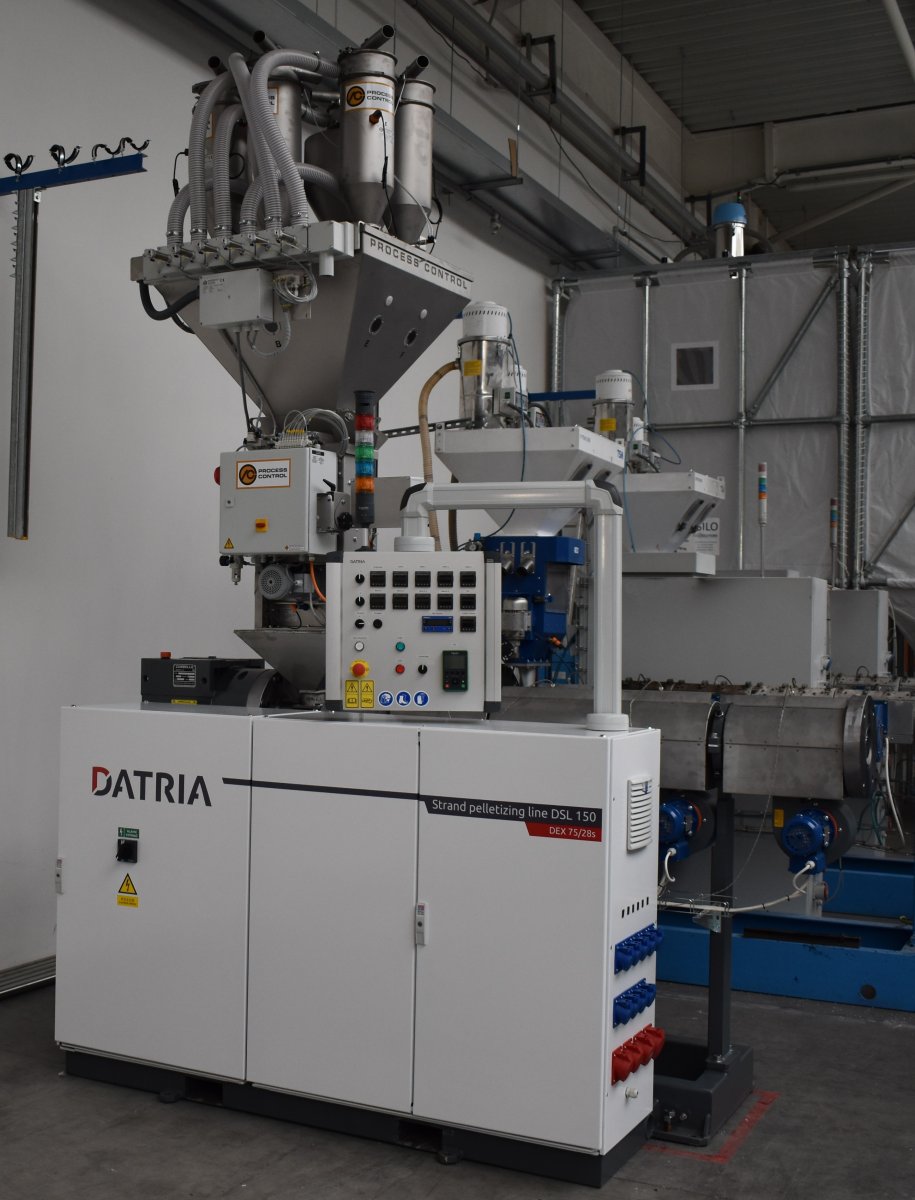

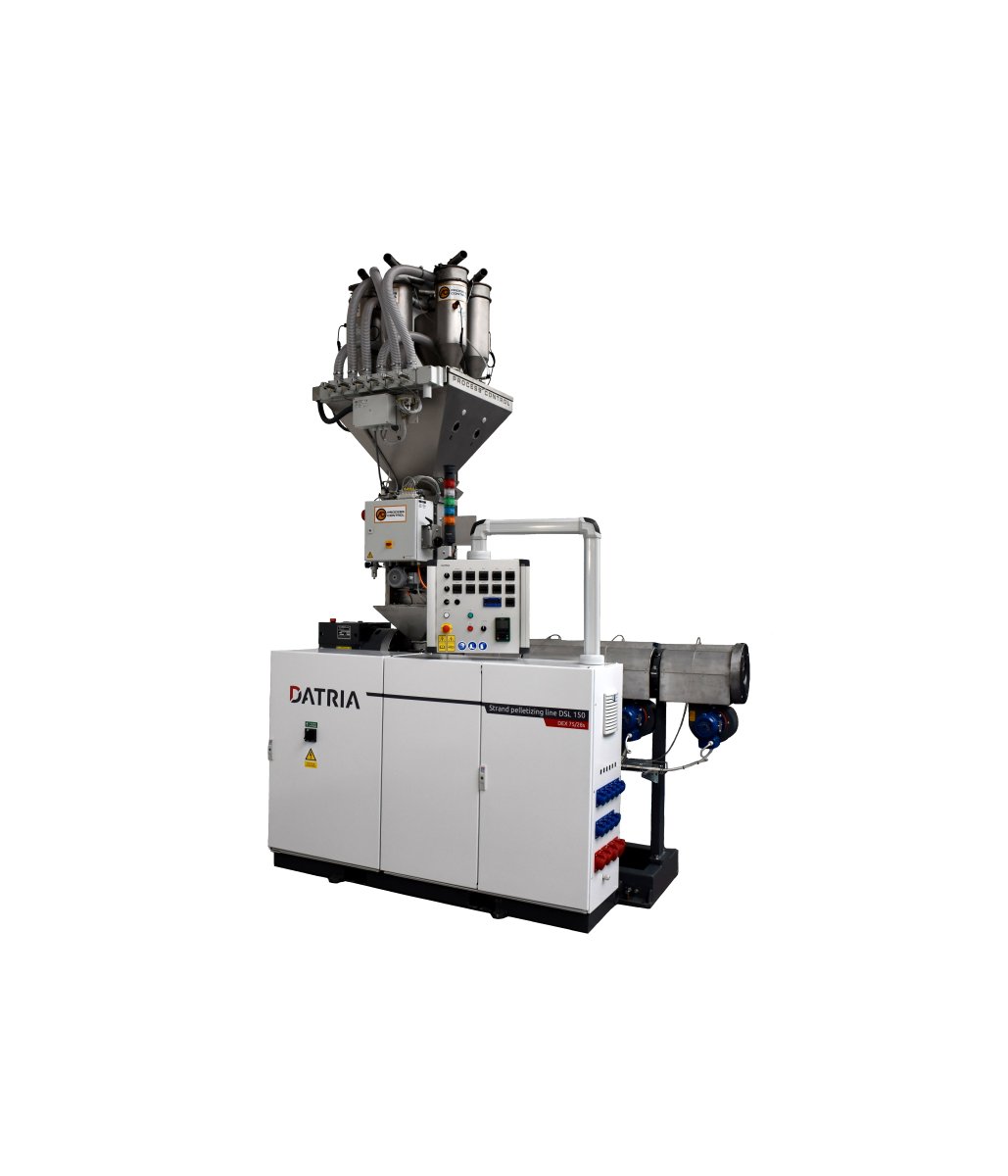

- Single screw extruder of DEX 75/28s models
- XALOY melt hydraulic plate filter.

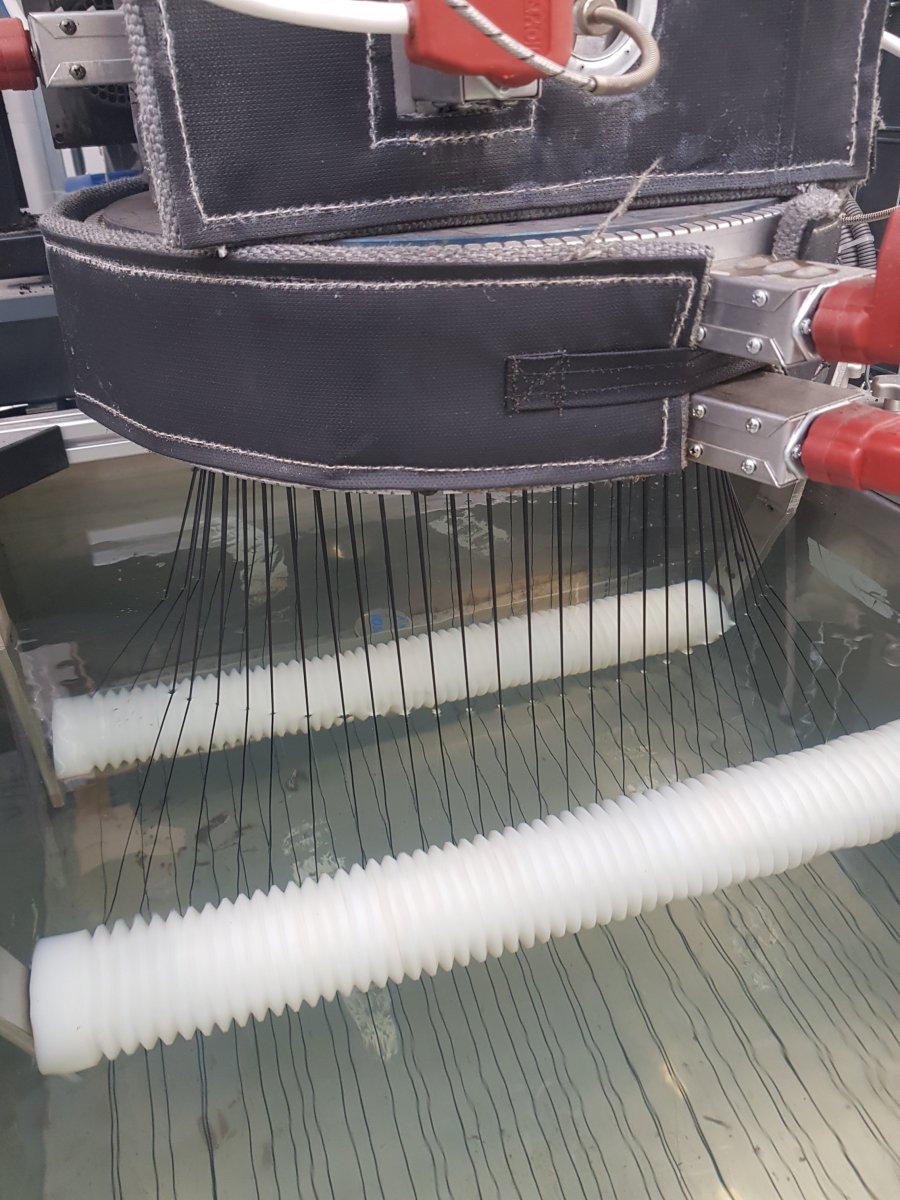

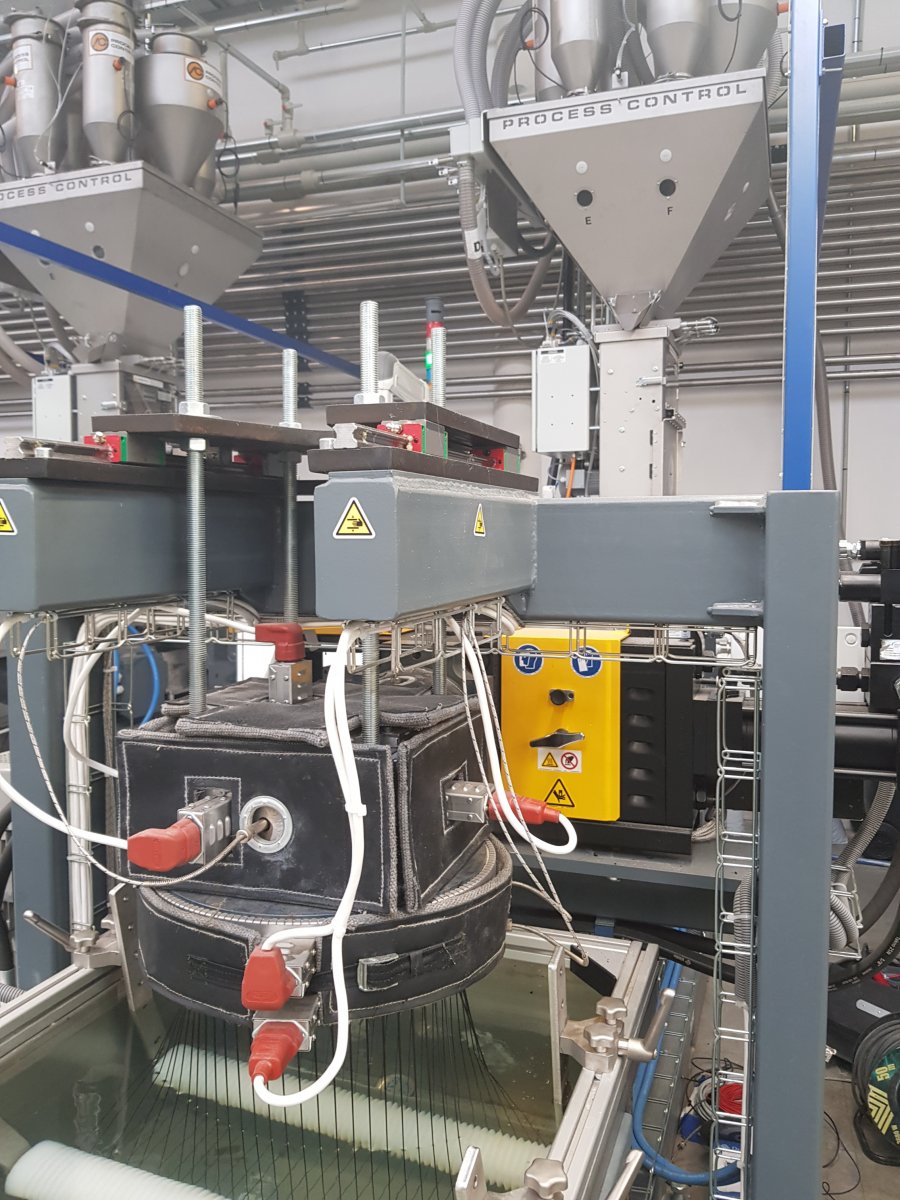

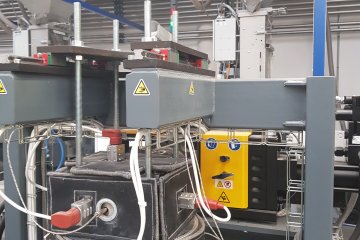

- String head with thermal insulation.

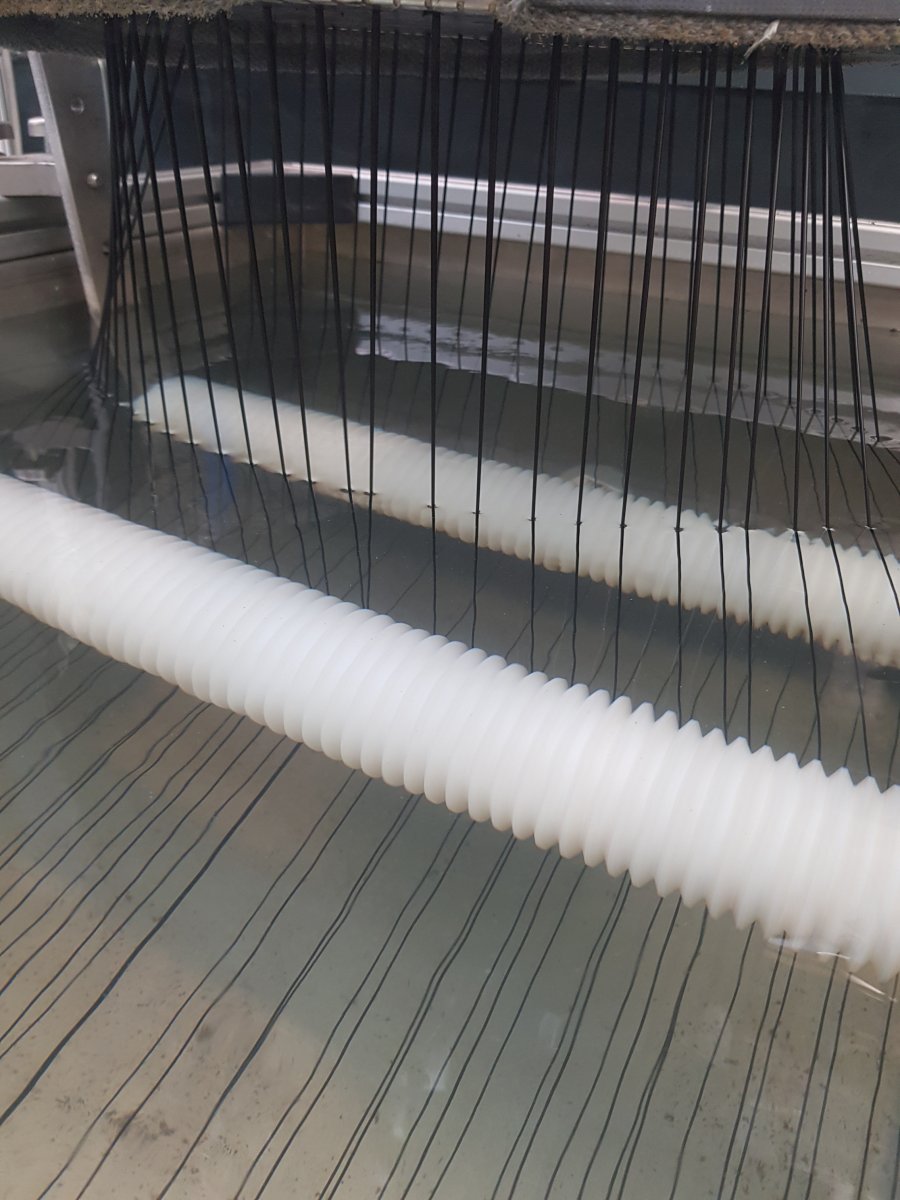

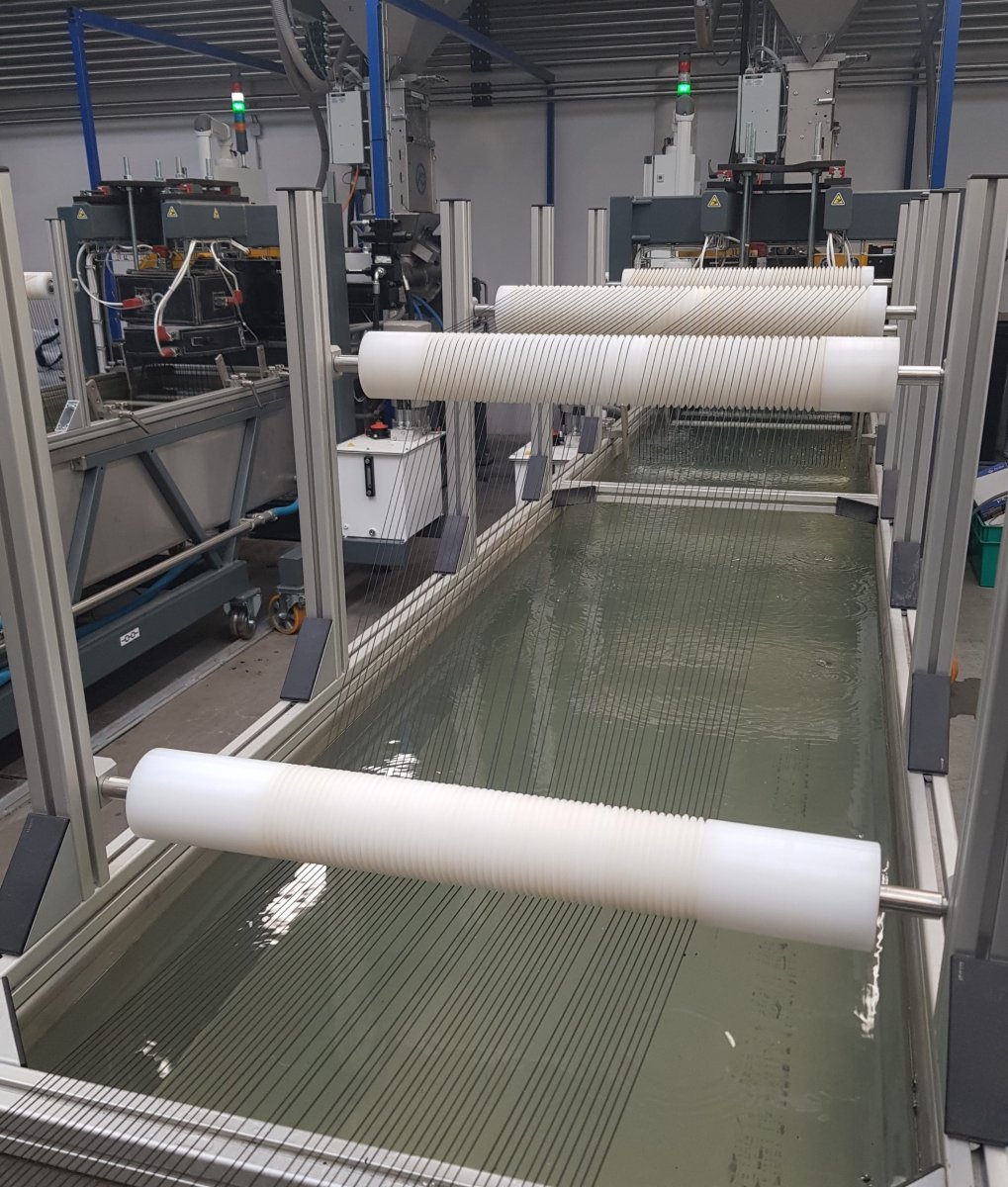

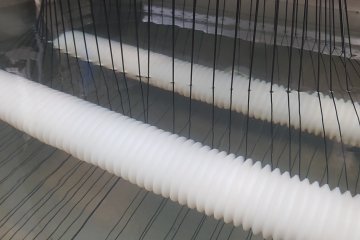

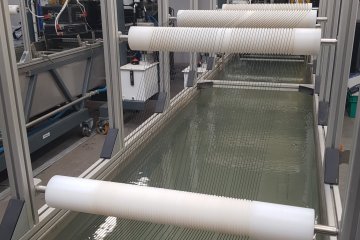

- Cooling stainless steel tub including circulation pumps and heat exchanger.
- Air blower for strings with a double drying effect.
- String granulator of your choice (SCHEER, MAAG, POEX).
- Option: Gravimetric dispenser TSM

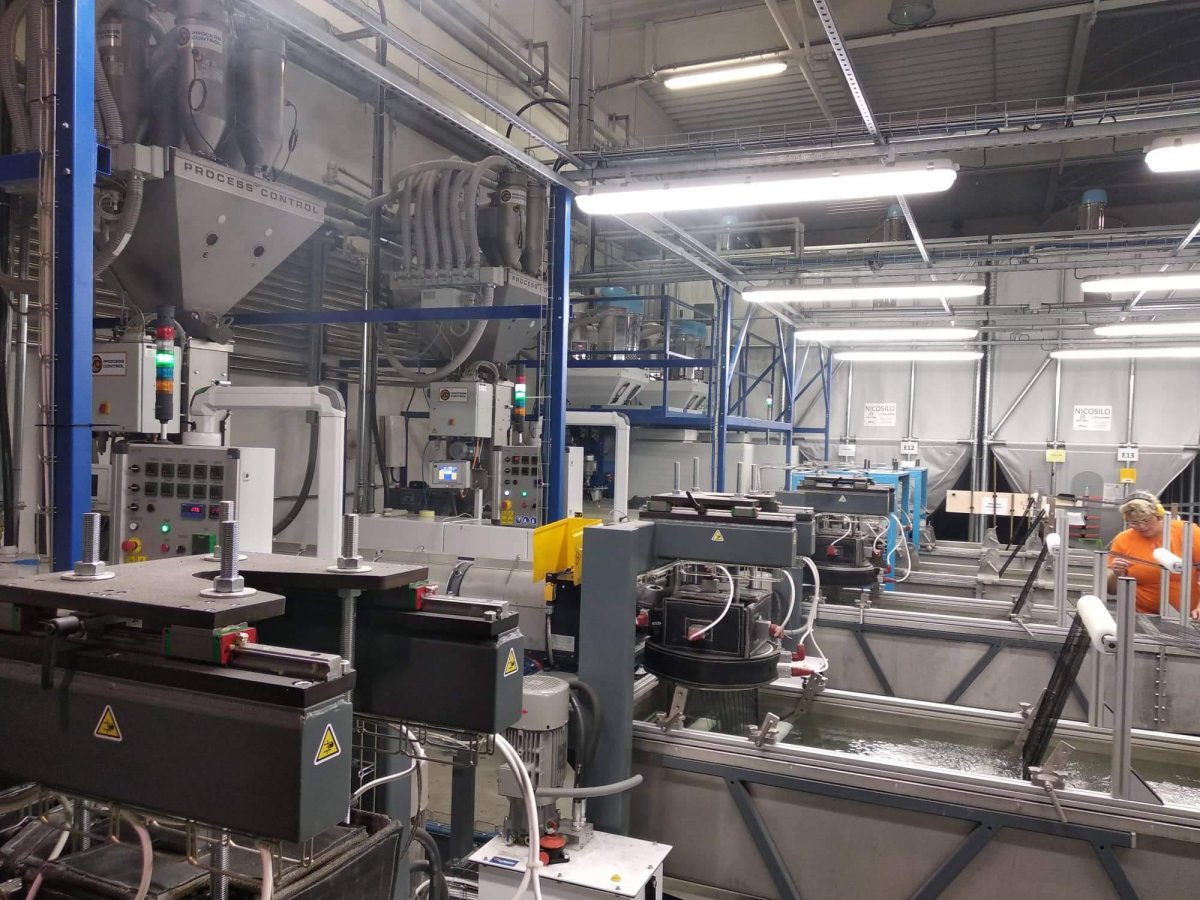

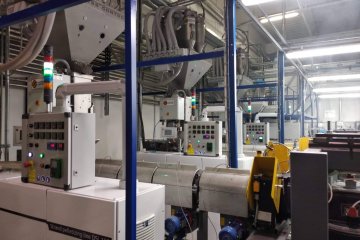

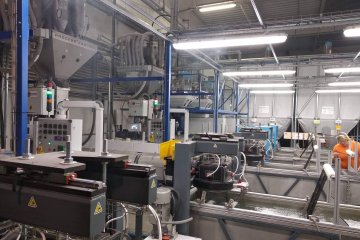

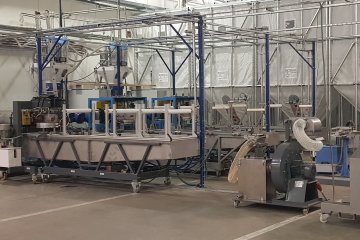

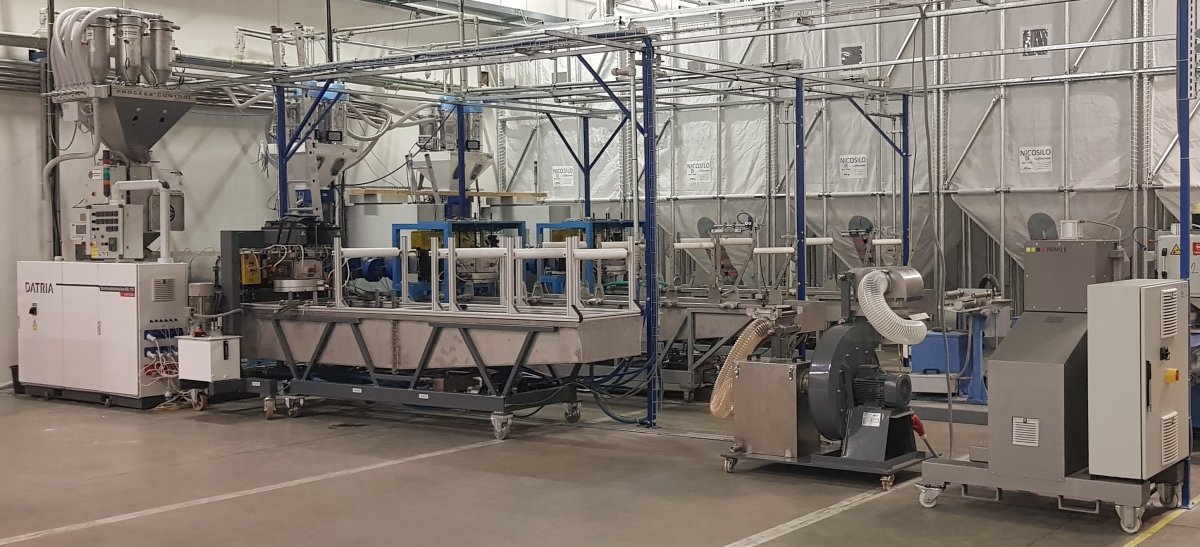

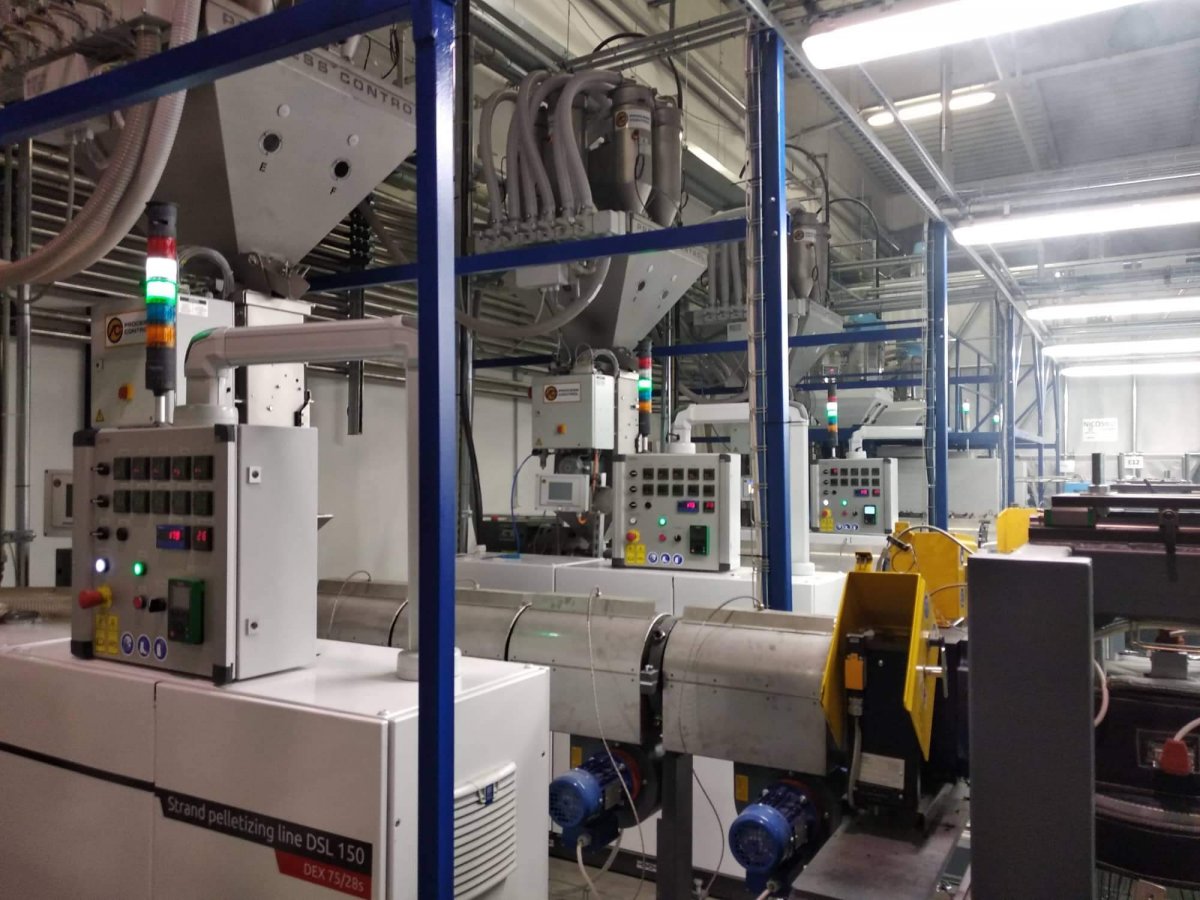

Regranulation string line DSL 150 - photogallery
