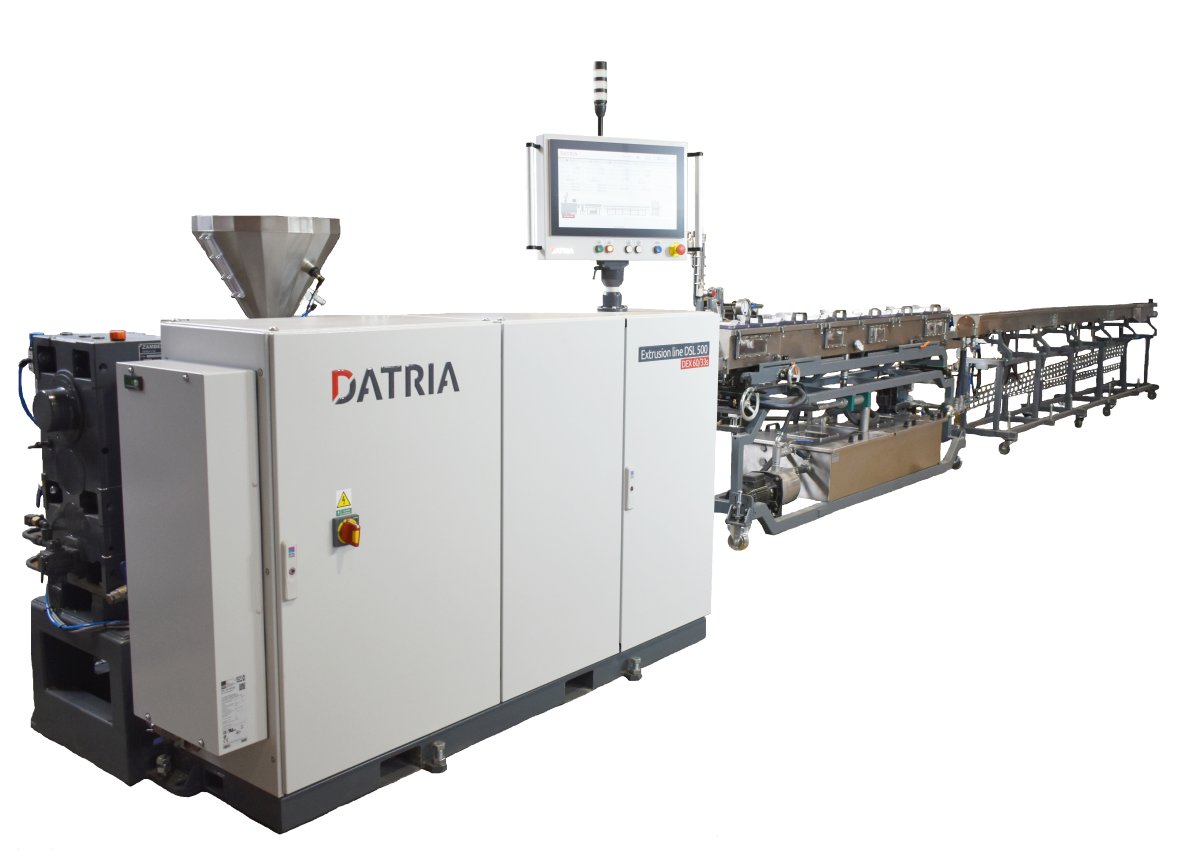

Extrusion line DSL 500

Extrusion string line for the production of technical tubes from TPU and PA materials with extrusion speed up to 40 m/min for D6 mm , up to 15 m/min for D19 mm (depending on material and configuration). It contains branded electrical components, features high energy efficiency and PowerSave design for energy saving. The line is designed for the challenging conditions of 24/7 operation.

  • Equipped with a single-screw extruder DEX 60, which allows processing of different materials thanks to changeable screws
  • Extrusion head with tool for precise pressure and process control
  • EPROTEC melt gear pump
  •  Vacuum bath 6.7 m + cooling bath 3.7 m made of stainless steel
  • Belt conveyor with rotary cutter Gillard
  • Dynisco pressure sensor
  • Line design in PowerSave version
  • Advanced PLC control with DEXTRUSION 2024 touch screen software and remote management via VPN
  • Total extrusion line length up to 25 m
  • Can be supplemented with a printer and more

Total power up to 130 kg/hr depending on the material to be processed.
