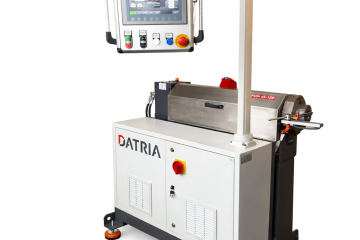

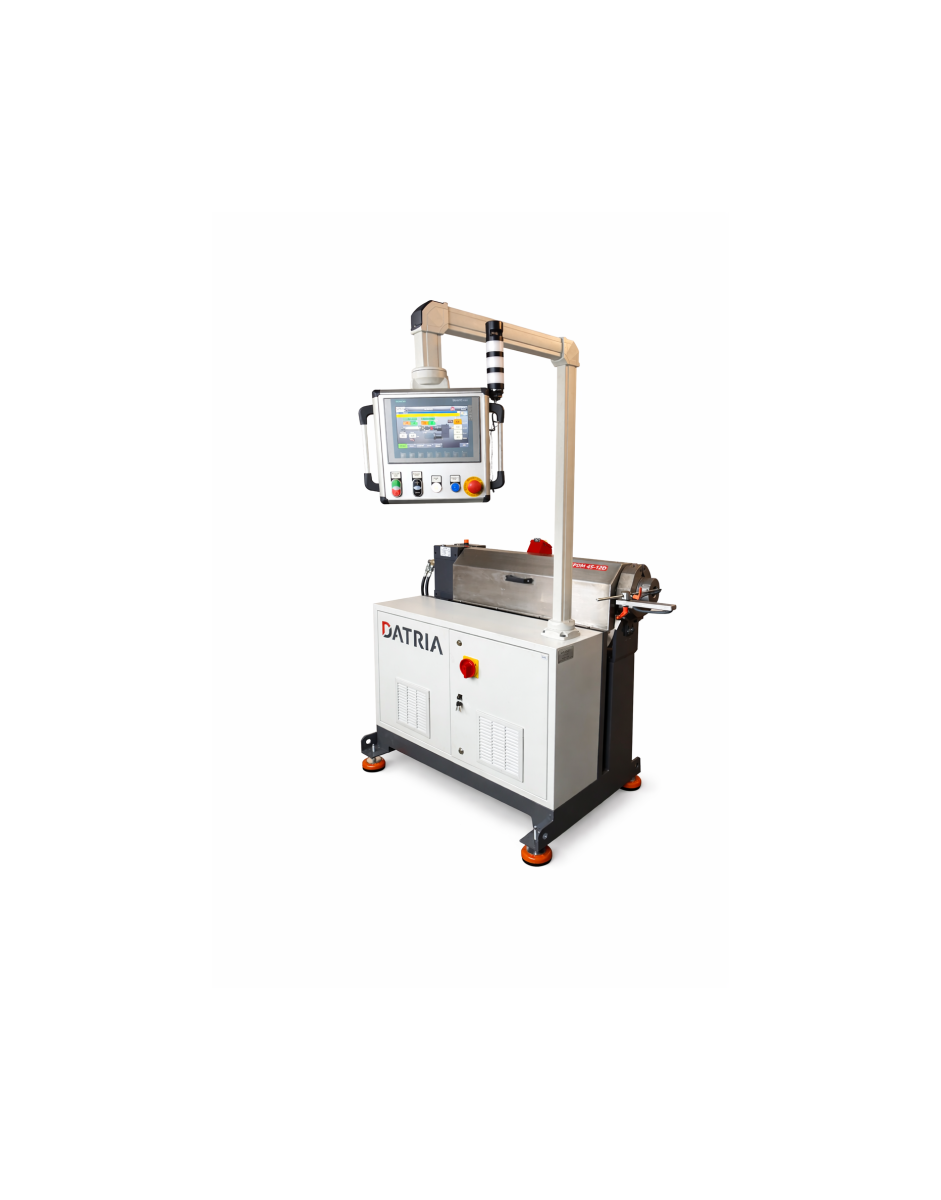

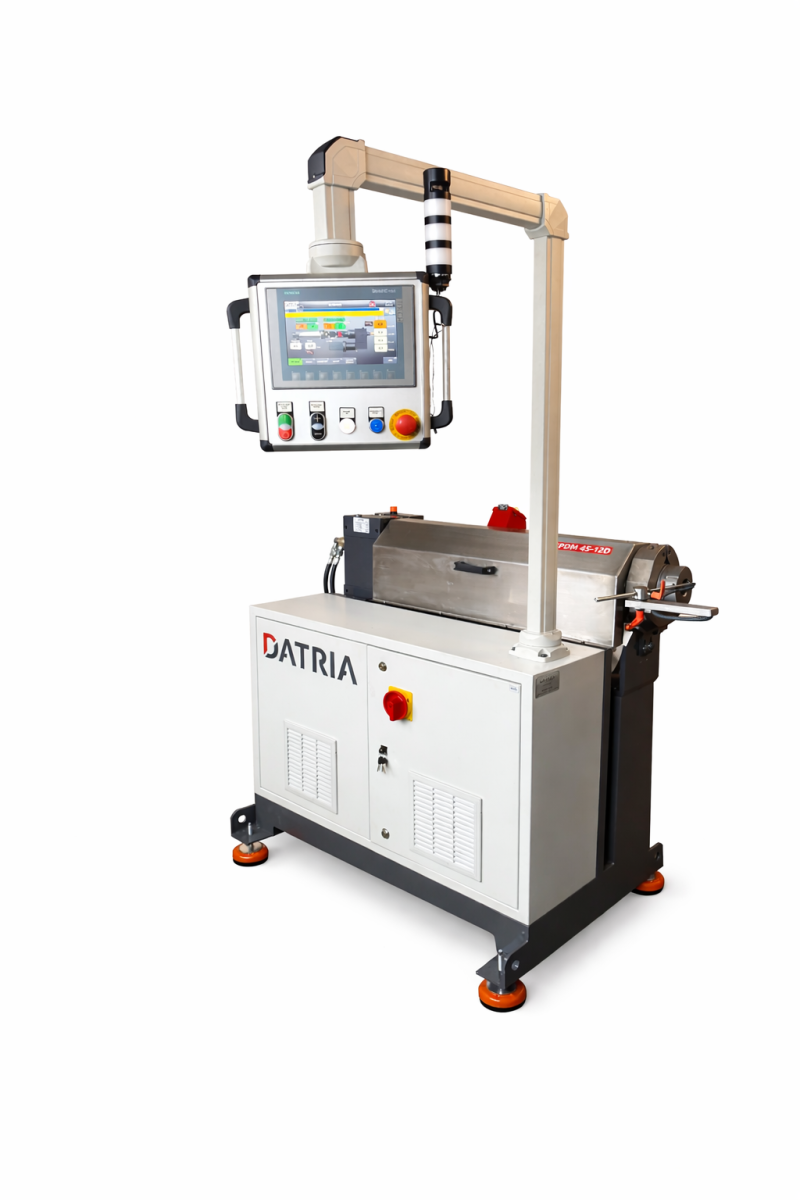

Extruder DATRIA EPDM 45-12D
The DATRIA EPDM 45-12D extruder is a compact single-screw extruder designed for processing EPDM rubber in granulated form and for the production of profiles from EPDM tapes. The equipment is supplied as a complete unit including the Technotrans teco ci 95 base 60 temperature control unit and an extrusion head with a die for the production of one profile from an EPDM strip, including installation of the technology and operator training.
The extruder is equipped with a PLC control system with a touch panel, which allows precise adjustment of temperatures, screw speed and monitoring of operating parameters. Stable temperature control and safety features ensure safe and reliable operation.
- Screw diameter: 45 mm
- Extrusion capacity: approx. 8–12 kg/h (depending on the material)
- Main motor: 4 kW with frequency inverter
- Number of temperature zones: 2 (barrel + head)
- Screw and barrel material: nitrided steel
- Melt pressure and temperature sensor: 0–700 bar
- Control system: Siemens PLC with touch panel
Extruder DATRIA EPDM 45-12D - photogallery
