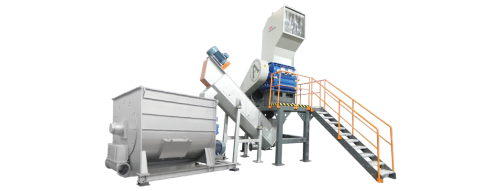

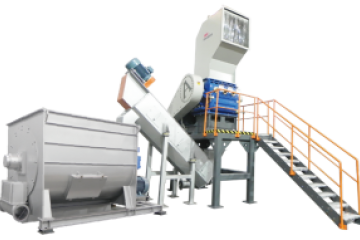

Linia recyklingowa do prania do opakowań foliowych PE/PP

Firma Avian produkuje linie do prania folii PE

FRICTION WASHER

When the surface of the regrind needs to be washed after coming out of the Wet Granulator the friction washer steps into help. The friction washer is positioned at the bottom of the Wet Granulator discharge area and the regrind feeds into the washer. The washer then sprays the material with water and it passes through a number of paddles to be rinsed thoroughly before it enters the dryer.

MODEL	MOTOR (kW)	HOPPER OPENING	SCREEN(Ø)	L	W	H	A	B
AFW-20	20	300x150mm	3-6 mm	2800mm	1100mm	3200mm	1700mm	1200mm
AFW-30	30	420x200mm	3-6 mm	3230mm	1315mm	3730mm	1940mm	1460mm
AFW-40	40	500x250mm	3-6 mm	4500mm	1500mm	4200mm	2200mm	1600m

HIGH SPEED WASHER

Avian Mechanical Dryers area a solution to take wet regrind and dry it to a 6-8% moisture rate. It is a heavy duty constructed machine with a reinforced high speed rotor and heavy constructed paddles help remove excess water from the regrind.

MODEL	MOTOR (kW)	HOPPER OPENING	SCREEN (Ø)	L	W	H	A
AHW-90	90	325x795mm	2,5-8 mm	4090mm	2020mm	2165mm	1850mm
AHW-45	45	250x500mm	2,5-8 mm	3000mm	1500mm	1800mm	1700mm

AUGER

To help separate water from the regrind before it is loaded into the dryer Avian has an Auger that can help. Constructed from heavy gauge stainless steel the material enters from the discharge of the size reduction machine and travels up and through the paddles to discharge excess water and is then loaded into the dryer for further moisture reduction.

ZIGZAG

The primary use of the Zigzag is to separate dust, fine, angel hair, and labels from materials. When there is powder in the regrind material the Zigzag helps separate the material so that it is free of powder contamination during use
