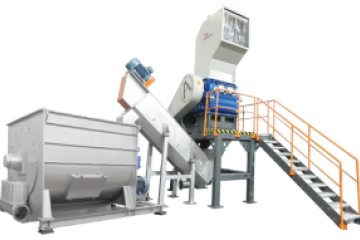

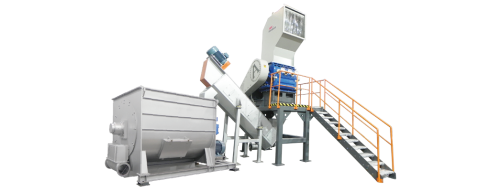

PET WASHING LINE

PET WASHING LINE

PET WASHING LINE

FRICTION WASHER

When the surface of the regrind needs to be washed after coming out of the Wet Granulator the friction washer steps into help. The friction washer is positioned at the bottom of the Wet Granulator discharge area and the regrind feeds into the washer. The washer then sprays the material with water and it passes through a number of paddles to be rinsed thoroughly before it enters the dryer.







MODEL MOTOR (kW) HOPPER OPENING SCREEN(Ø) L W H A B
AFW-20 20 300x150mm 3-6 mm 2800mm 1100mm 3200mm 1700mm 1200mm
AFW-30 30 420x200mm 3-6 mm 3230mm 1315mm 3730mm 1940mm 1460mm
AFW-40 40 500x250mm 3-6 mm 4500mm 1500mm 4200mm 2200mm 1600m



HIGH SPEED WASHER

Avian Mechanical Dryers area a solution to take wet regrind and dry it to a 6-8% moisture rate. It is a heavy duty constructed machine with a reinforced high speed rotor and heavy constructed paddles help remove excess water from the regrind.



MODEL MOTOR (kW) HOPPER OPENING SCREEN (Ø) L W H A
AHW-90 90 325x795mm 2,5-8 mm 4090mm 2020mm 2165mm 1850mm
AHW-45 45 250x500mm 2,5-8 mm 3000mm 1500mm 1800mm 1700mm

AUGER

To help separate water from the regrind before it is loaded into the dryer Avian has an Auger that can help. Constructed from heavy gauge stainless steel the material enters from the discharge of the size reduction machine and travels up and through the paddles to discharge excess water and is then loaded into the dryer for further moisture reduction.





ZIGZAG

The primary use of the Zigzag is to separate dust, fine, angel hair, and labels from materials. When there is powder in the regrind material the Zigzag helps separate the material so that it is free of powder contamination during use
