PASG Pipe Shredding Granulator

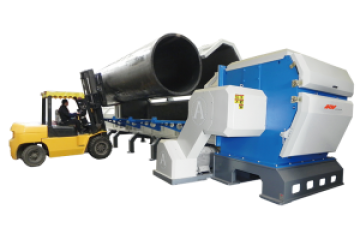

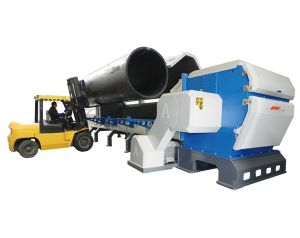

The PASG Pipe Shredding Granulator Combi has been engineered for shredding of plastic pipes. It has the capacity to fit 20 foot sticks of pipes. The Ram pushes the pipes through to be shredded. The shreds are then dispensed onto a conveyor to be put through the granulator and be grinded to the desired size.

The unique pipe shredding granulator can recycle plastic pipes up to the diameter of 2500 mm. The machine is assembled exclusively from high quality components. The knives exchange is prolonged thanks to the excellent quality of knives

Model	motor(HP)	Rotor Knives	Hopper opening	L	W	W1	H
PASG800-L	2x75HP	192	700x6000mm（28“x240"）	10500mm	2000mm	700mm	1800mm
PASG1200-L	2x90HP	240	900x6000mm（28”x240“）	11000mm	2300mm	900mm	2000mm
PASG1500-L	2x100HP	288	1300x6000mm（28”x240“）	12000mm	3500mm	1300mm	2500mm
PASG2000-L	2x120HP	488	1700x6000mm（28”x240“）	13000mm	3800mm	1700mm	3500mm
