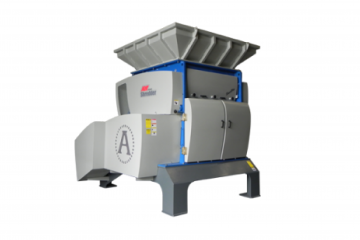

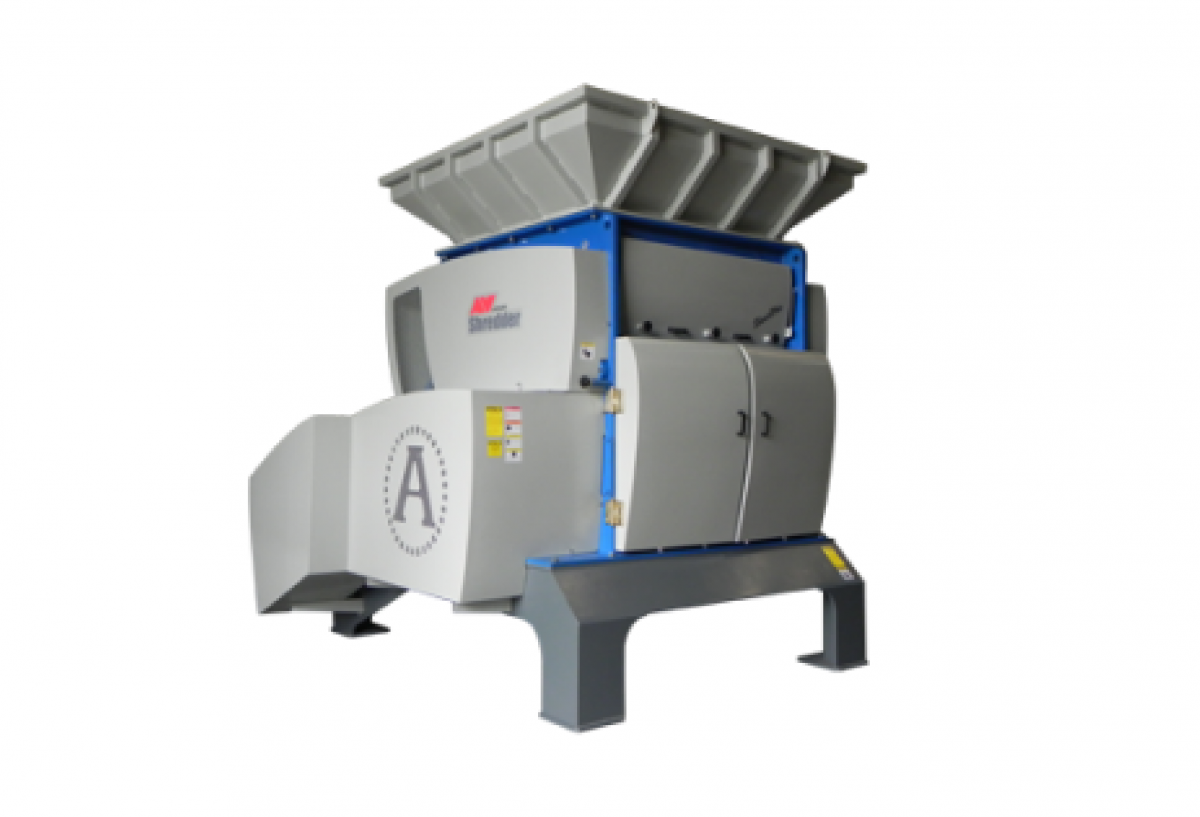

JASG Film & Sheet Single Shaft Shredder
JASG high output Film & Sheet Single Shaft Shredders use a PolyCUT technology design for precise cutting. The knives are positioned at an angle which maximizes cuts of the material being fed into the machine. A FlexiPush, J-shaped ram helps push the material into the cutting chamber to be shredded. Its swing-out door design in front makes it easy to access the internal parts of the machine; it also helps with rotating and replacing the knives.

Features:
- a wide range of motors available from 75 up to 150 HP
- knives made of D2 steel proved to last longer than regular steel
|
JASG 1600 |
JASG 2000 |
JASG 2500 |
|
Power supply |
(KW/HP) |
55/75 |
110/150 |
110/150 |
Knives |
(pcs) |
42 |
105 |
139 |
Rotor speed |
(RPM) |
88 |
120 |
88 |
Weight |
(kg) |
8500 |
16500 |
19000 |
Rotor diam. |
(mm) |
500 |
500 |
500 |
Cutterhouse |
(mm) |
1600x1000 |
2000x1500 |
2500x1500 |
Output |
(kg/h) |
1500-2500 |
2000x2500 |
2500-3500 |
Opitionals |
|
|
|
|
Rotor cooling |
|
Yes |
Yes |
Yes |
Screen hole |
(mm) |
50-100 |
50-100 |
50-100 |
