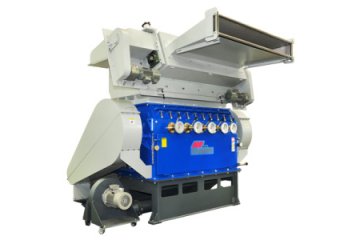

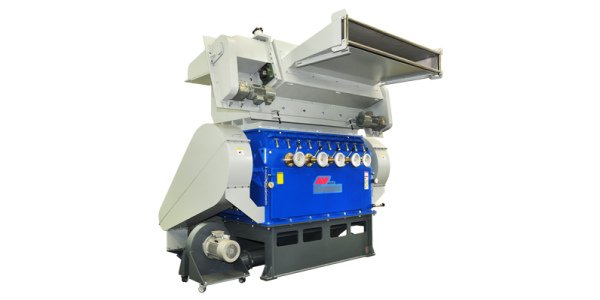

GF Film Granulator

The GF Film Granulator is unique in that it is used for grinding sheets and film consisting of BOPP, BOPET, BOPA, PP, PS, PVC, PE, PC. It has the option to be equipped with a roll feeder that feeds the material into the machine. It’s easy to perform routine maintenance and has “V” or “X” shaped knives to help deliver evenly cut regrinds.

Features:

A wide range of motors available from 10-215 HP
Soundproofing to help control noise levels
Knives made from D2 Steel proven to last longer than regular steel
Screen sizes range from 1/8″ – 1″
Optional Flywheel available to improve energy efficiency
Optional Edge Trimming Roll Feeder improve feed flow into Granulator

Model	Motor Power	Chamber Opening	Output Range	Blower Power
GF35/40	5.5 kW	350 x 300 mm	50 – 150 Kg / h	2.2 – 4 kW
GF45/60	18.5 kW	400 x 600 mm	200 – 300 Kg / h	2.2 – 7.5 kW
GF50/60	30 kW	500 x 600 mm	300 – 400 Kg / h	3 – 11.5 kW
GF60/100	75 kW	600 x 1.000 mm	600 – 800 Kg / h	5.5 – 18.5 kW
GF80/120	110 kW	800 x 1.200 mm	800 – 1,100 Kg / h	7.5 – 23.5 kW
GF80/200	160 kW	800 x 2.000 mm	1.000 – 2.000 Kg / h	15 – 37 kW
