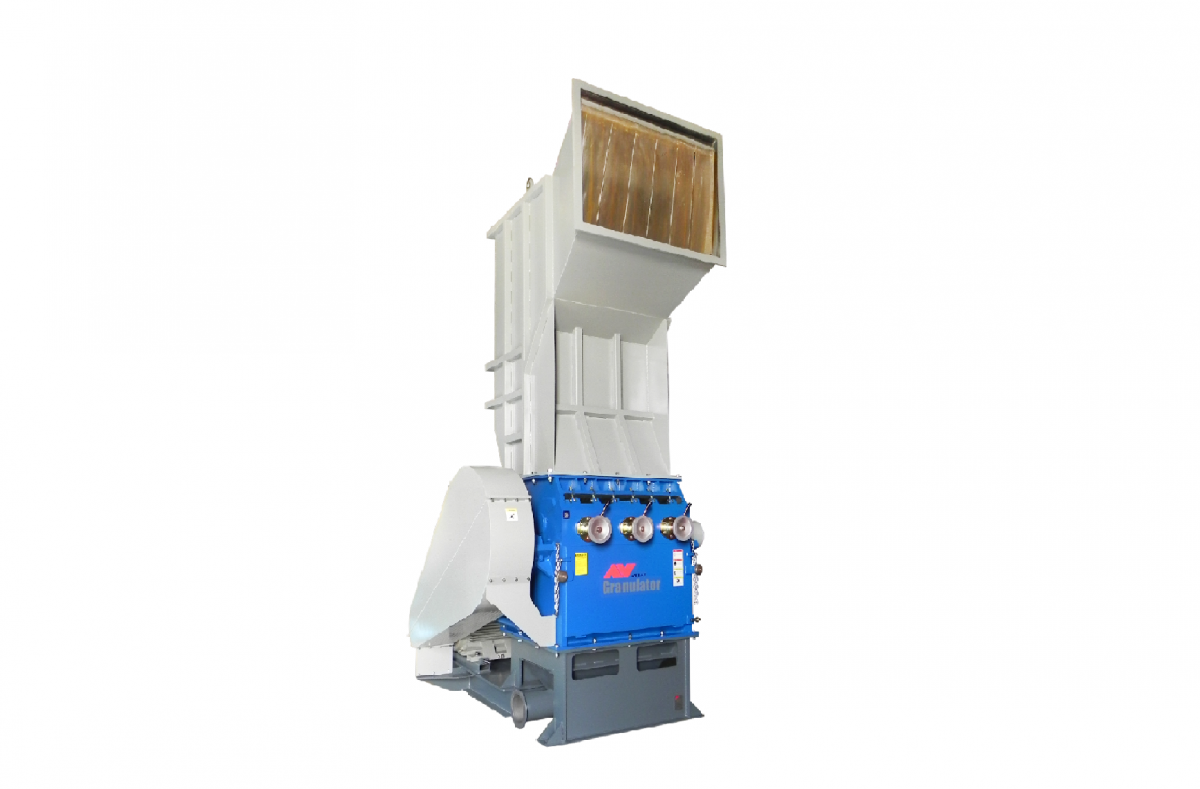

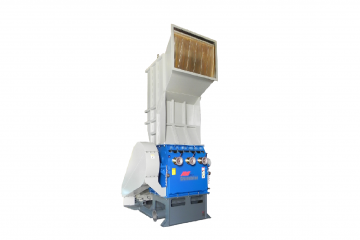

G80 Super Heavy Duty Granulator

The G80 Super Heavy Duty Granulator is designed for large-scale applications that require a large amount of horsepower and output. It comes equipped with high-density soundproof and an optional flywheel to improve energy efficiency. Applications that are best suited for this machine are solid purging, baled fiber, cast blocks, rubber tires, haystack film, blocks, rods, and heavy wall fittings.

Features:

- a wide range of motors available from 100 up to 500 HP

- high density soundproof

- knives made of D2 steel or ceramic proved to last longer than regular steel

- screen sizes range from 1/6" - 1"

- optional flywheel abailable to improve energy efficiency

- multiple stationary and cutting knives provide an efficient cut with minimum dust and fines

Model	Motor KW	Cutting chamber	Cutting knives	Stationary knives	Screen holes (Φ）
G80/120	130~200	800x1200mm	10/14	2/4	4～25mm
G80/160	132~250	800x1600mm	10/14	4/6
G80/200	160~300	800x2000mm	10/14	4/6

Model	Output kg/h	Blower power	Weight	Hopper opening	Length x Width x Height (LxWxH)
G80/120	1000～1500	15-22 kW	12000 kg	1350x1000mm	2765x2350x4710mm
G80/160	1200～2000	22-30 kW	13500 kg	1700x1000mm	2765x2700x4710mm
G80/200	1500～2500	30-45 kW	15000 kg	2250x1300mm	2965x3200x4610mm
