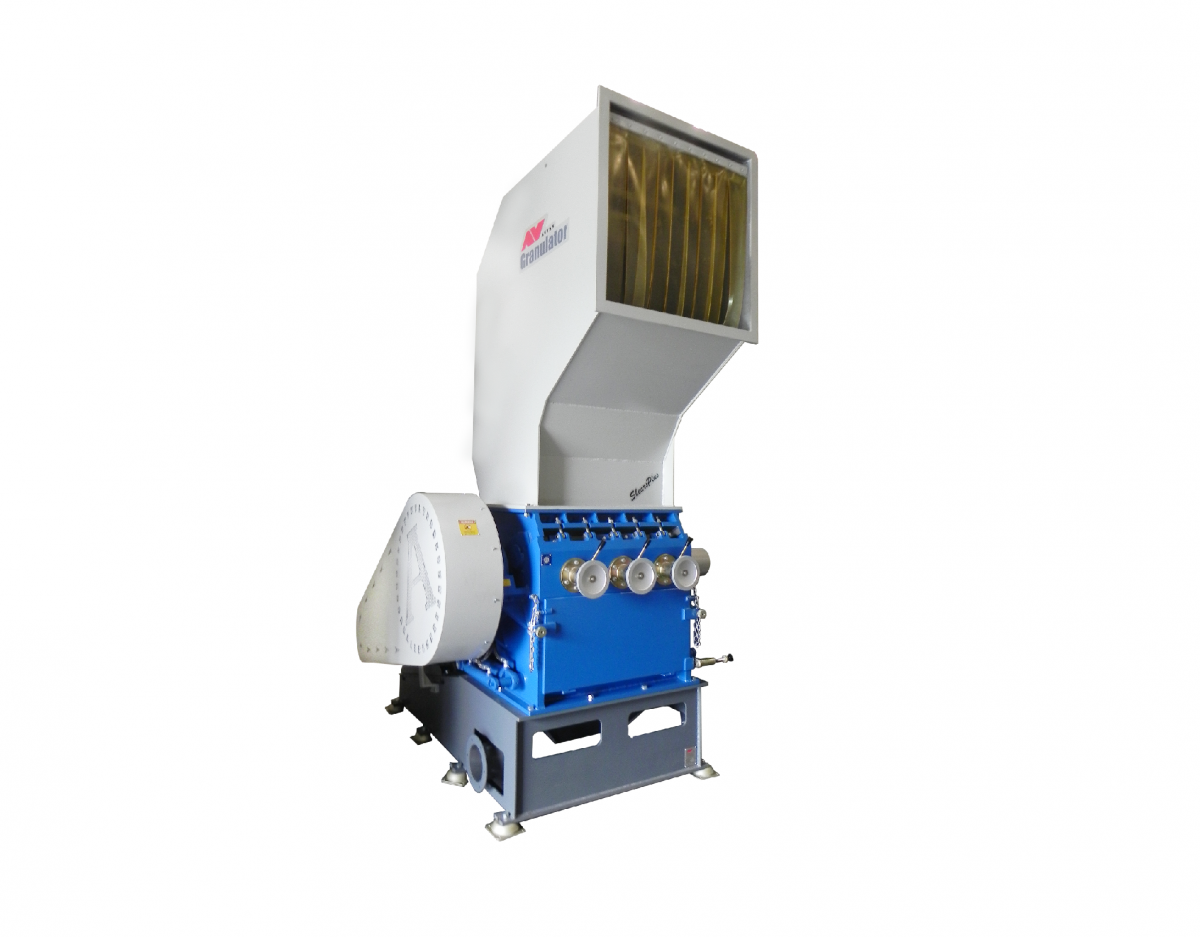

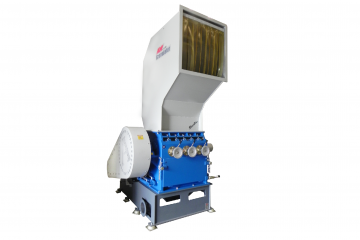

G60/G70 Standard Heavy Duty Granulator

The G60/G70 is a Standard Heavy Duty Granulator that is ideal for foam, baled fiber, post-consumer bottles, film fibers, bumpers, and instrument panels. As the material goes through and meets the high strength knives, they slice through the material to the desired size. The hydraulic motor helps open and close the hopper. An easy access to the interior of the machine for routine maintenance.

Features:

- a wide range of motors available from 100 up to 200 HP
- high density soundproof
- knives made of D2 and D3 steel proved to last longer than regular steel
- screen sizes range from 1/6" - 1"
- optional flywheel available to improve energy efficiency
- multiple stationary and cutting knives provide an efficient cut with minimum dust and fines

Model	Motor kW	Cutting chamber	Cutting knives	Statory knives	Screen holes（Φ）
G60/80	75~110	600x800mm	10/14	2/4	4～25mm
G60/100	75~132	600x1000mm	10/14	2/4
G60/120	75~160	600x1200mm	10/14	2/4
G60/150	75~160	600x1500mm	10/14	4/6

Model	Output kg/h	Blower power	Weight	Hopper opening	Length x Width x Height
G60/80	500～800	7.5-15 kW	7500 kg	1000x800mm	2435x1905x3645mm
G60/100	600～1000	7.5-15 kW	8000 kg	1180x800mm	2435x2085x3645mm
G60/120	800～1200	11-22 kW	8500 kg	1350x800mm	2435x2255x3645mm
G60/150	800-1500	11-22 kW	9000 kg	1750x980mm	2580x2605x3815mm
