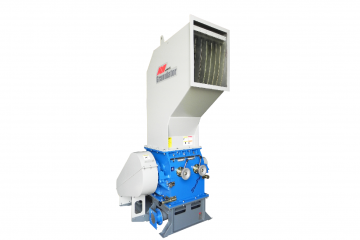

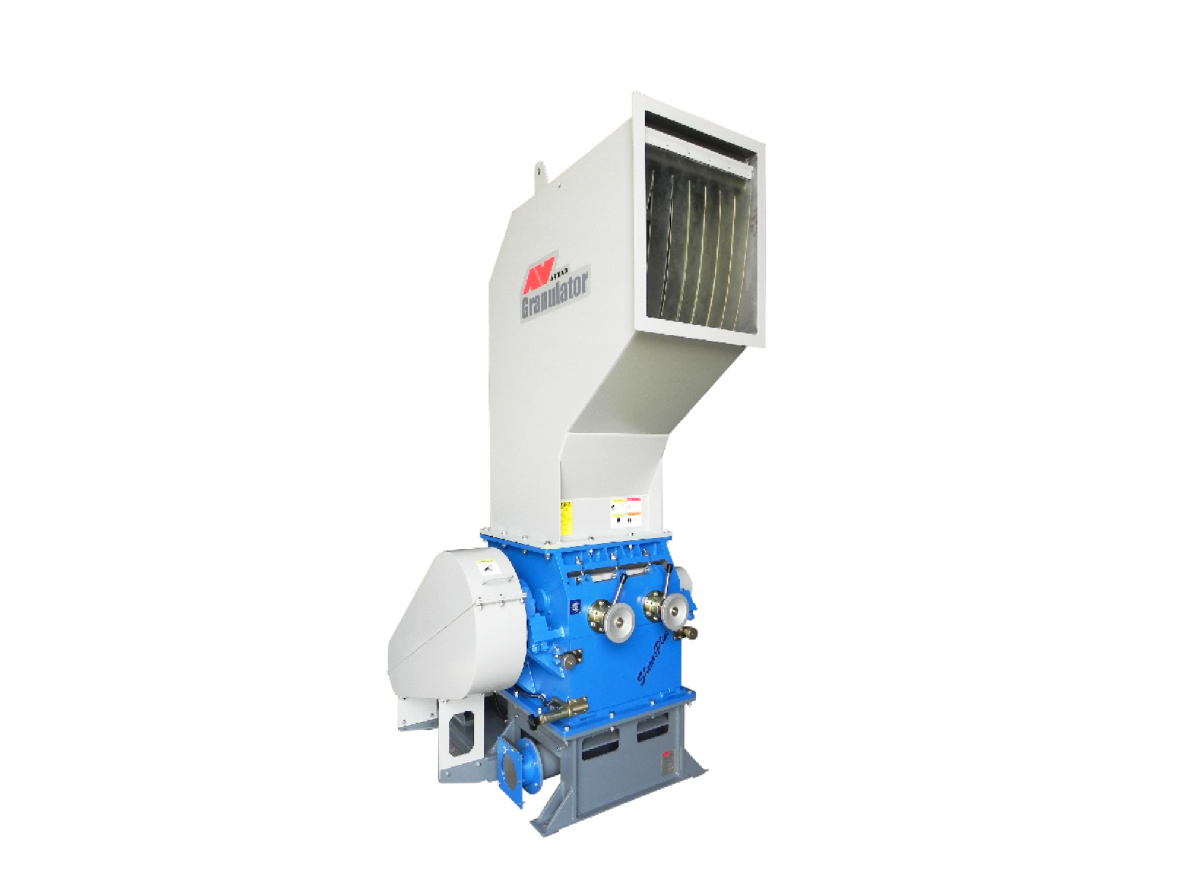

G50 Medium Sized Granulator

The G50 Medium Sized Granulator is a machine used to granulate solid purgings, baled fiber, cast blocks, rubber tires, haystack film, blocks, rods, and heavy wall fittings. It has an easy access to the chamber for routine maintenance.

Features:

- a wide range of motors available from 30 up to 150 HP
- high density soundproof
- knives made of D2 steel proved to last longer than regular steel
- screen sizes range from 1/8" - 1"
- multiple stationary and cutting knives provide an efficient cut with minimum dust and fines
- top feeding hopper for ease of loading material into the machine

Model	Motor kW	Cutting chamber	Cutting knives	Stationary knives	Screen holes（Φ）
G50/60	22~55	500x600mm	6/10	2/4	3～25mm
G50/80	37~75	500x800mm	6/10	2/4
G50/100	45~100	500x1000mm	6/10	2/4
G50/120	45~100	500x1200mm	6/10	4/6

Model	Output	Blower power	Weight	Hopper opening	Length x Width x Height
G50/60	400～500 kg/h	3-7.5 kW	2500 kg	600x500mm	1625x1445x2070mm
G50/80	400～600 kg/h	4-7.5 kW	3000 kg	800x500mm	1625x1645x2070mm
G50/100	500～700 kg/h	5.5-11 kW	3500 kg	1000x500mm	1625x1845x2070mm
G50/120	500-1000 kg/h	7.5-15 kW	4000 kg	1200x500mm	1625x2045x2070mm
