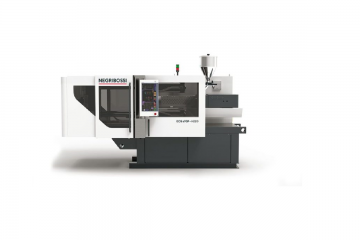

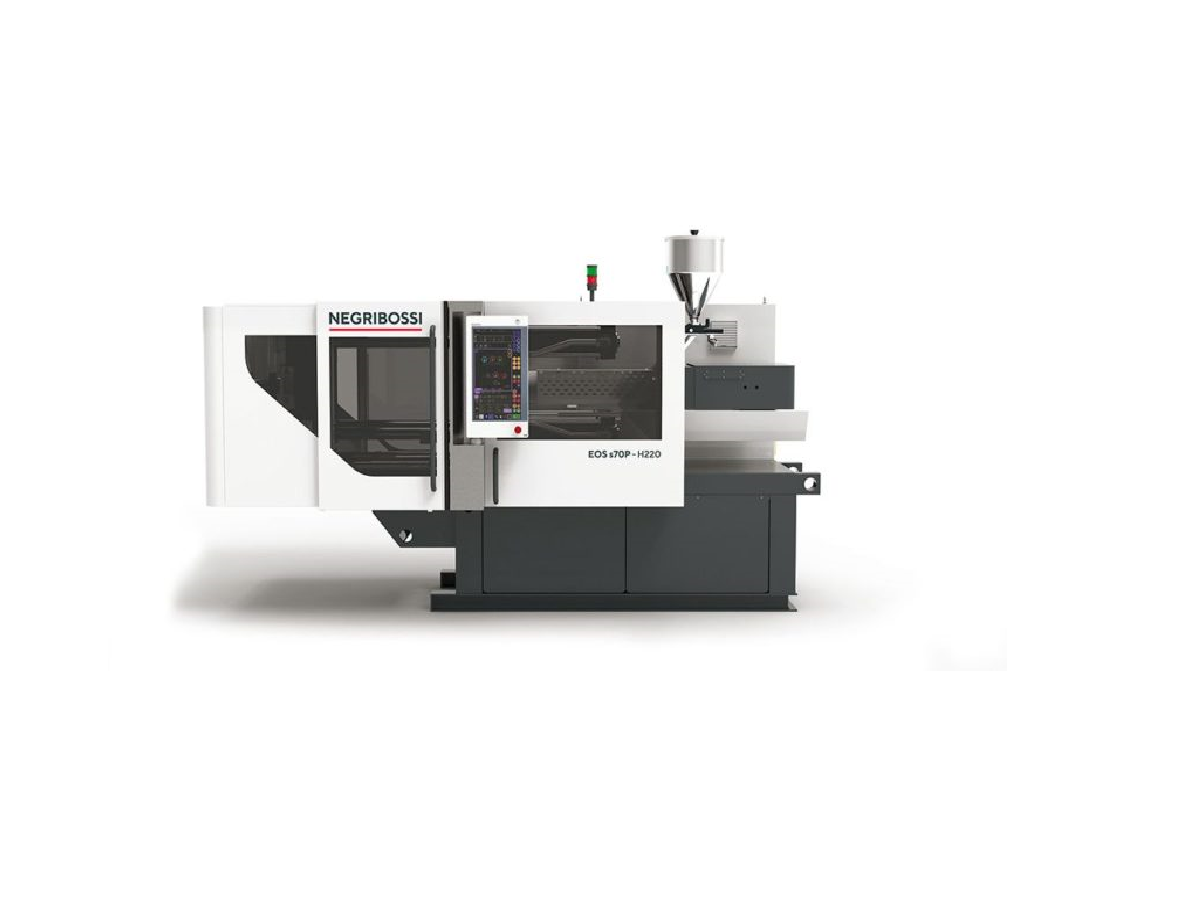

EOS sP (70-160 tonnes)

TWO PLATEN SERVO TECHNOLOGY

The EOS sP Series are two-platen clamp, servo-pump, hydraulic powered injection moulding machines available in 70-, 110- and 160-tonne models. An extremely compact footprint with very generous part drop area is achieved through the cantilever clamping unit design combined with a twin ram injection unit which features a hydraulic reciprocating screw. Injection capacities range from 69g to 600g (PS) across the line. EOS machines are equipped as standard with:

TACTUS™ Touchscreen PC with Powerlink, user-friendly interface with full range of control parameters
Highly efficient servo-motor driven gear pump system
Innovative cantilever clamping unit with very generous tie bar spacing to accommodate larger moulds, and a moving platen that rides on linear bearings, providing excellent parallelism between the platens and ensuring cleanliness in the moulding area due to the absence of lubrication oil
Robust twin cylinder injection unit
Extremely compact footprint
AMICO wireless remote service access

EOS sP END MARKET APPLICATIONS
